Éclairage ATEX LED AUTONOME SUR BATTERIE
–> Voir offre complète projecteur led mobile ATEX
Utilisez nos projecteurs ATEX led sur batterie pour toutes les opérations d’inspection ou d’urgence.
4500 lm de flux lumineux dans un choix important d’angle, une autonomie jusqu’à 90 minutes à 50% de puissance
Ces projecteurs à led ATEX fonctionnent aussi sur le secteur, ces batteries étant optionnelles
• ATEX & IEC EX approved – Zone 1 & 2
• Ultra long life LED
• High Lumen output LED
• Easy installation, maintenance and inspection
• Emergency variants
• Wide operating temperature range
• Integral photocell (optional)
• 5 year warranty
• VARIO lens technology – easy modification of beam patterns
Optical
Beam Patterns-circular: 10°x 10° or 30°x 30° or 50°x 50° or 120°x 120°
(10 x 10 option can be upgraded to VARIO Technology)
Beam Patterns-elliptical: 35°x 10°or 60°x 25°or 80°x 30° or 120°x 50° (VARIO)
Lumen output on mains:
4,500 lm – circular beam patterns
4,000 lm – elliptical beam patterns (VARIO)
LED type: Platinum SMT LEDs
Number of LEDs: 24
CRI: 70+
Colour Temperature: Approx. 6,000K (others available upon request)
IP rating: IP66 & IP67
Temperature range: -50°C to +55°C (-20’C emergency variants)
Weight: 8kg (17.6lbs) Standard,
10Kg (22lbs) Emergency
Enclosure: Marine grade aluminium epoxy powder coated, toughened glass, all external fasteners and brackets are marine grade stainless steel

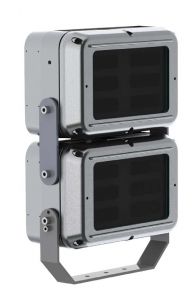

une version double tête ATEX LED pour 2 fois plus de puisance et de flux lumineux et apportant une redondance importante
Certification
ATEX Rating: ATEX and IEC Ex rated for Gas and Dust
Hazardous Area rating: Zone 1 & 2 – Gas and Dust
Certificates: CML13ATEX3007 & IECEx Pending
Gas: II 2 GD Ex emb IIC T5 or T4 Gb
Ta -50°C to +55°C (-20°C emergency variants)
II 2 GD Ex emb IIC T6 Gb
Ta -50°C to +48°C (-20°C emergency variants)
Dust: Ex tb IIIC T82°C Db
IP66 & IP67 –
Ta -50°C to +55°C (-20°C emergency variants)
Electrical
Input: 110-254V 50/60Hz AC only
Power: 120W standard, 130W emergency
Termination: Incoming terminal block suitable for looping 4
core 4mm² cable
Power Factor >0.95
Cable entries 2xM20 as standard (other entries available upon
request), dispatched complete with
